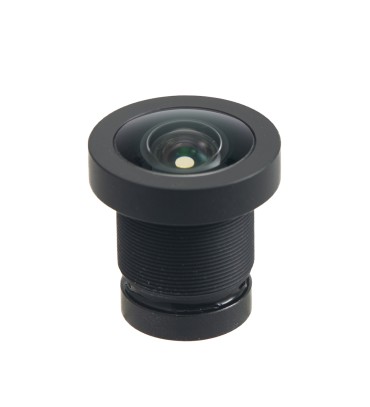

CH8127AB 1/1.7" 5.25mm 8MP Wide Angle Lens
$15.00
- Brand: CHANCCTV
- Product Code: CH8127AB
- Availability: In Stock
- Ex Tax: $15.00
CH8127AB is an M12 interface wide-angle lens designed for automotive front-view and high-precision vision applications. The lens is crafted with all-glass lenses to minimize dispersion and restore true colors and delicate image quality.
The lens has the following core features:
Ultra-wide field of view, precise imaging: 5.25mm focal length with 1/1.7" target design, suitable for 1/1.8" sensor, providing more than 120° wide-angle field of view, covering the panoramic view in front of the vehicle, easily capturing lane lines, traffic signs and obstacle details.
Large aperture night vision king: F1.8 ultra-large aperture, significantly improves the amount of light entering in low-light environments, clear imaging in dark scenes, excellent noise control, and ensures night driving safety.
All-glass lens, excellent image quality: All-glass optical structure, light transmittance up to 99%, anti-reflective coating reduces glare, supports 8 million pixel high-resolution output, and no attenuation of edge image quality.
Automotive-grade reliable design: M12 compact interface, adapted to vehicle-mounted multi-vibration and wide temperature environment, stable anti-vibration and dustproof performance, meeting automotive-grade durability requirements.
The lens has the following typical application scenarios:
In-vehicle front-view system: The wide-angle feature covers multiple lanes, identifies road obstacles and traffic signs in real time, and adapts to ADAS pre-installation requirements.
Industrial inspection: With an 8-megapixel sensor, it can accurately detect PCB solder joint defects and parts assembly integrity.
Security monitoring: The large aperture improves the quality of night imaging and is suitable for monitoring warehouses and parks without fill light.
Mobile robot navigation: Lightweight design and anti-vibration characteristics ensure the stability of AGV/AMR dynamic environment perception.
| Specifications And Dimensions | |
| Focal Length | 5.25mm |
| Image Size | 1/1.7" |
| Dimensions | ф19.0*L20.73mm |
| Lens Structure | 7G |
| Pixels And Aperture | |
| Resolution | 8MP |
| F-NO | 1.8 |
| Field Of View | |
| FOV (H*V*D) | 97.4°*50°*120.3° |
| Distortion | |
| OPT Distortion | <-50% |
| Mount And Filter | |
| Mount | M12*P0.5 |
| IR Filter | No IR |
