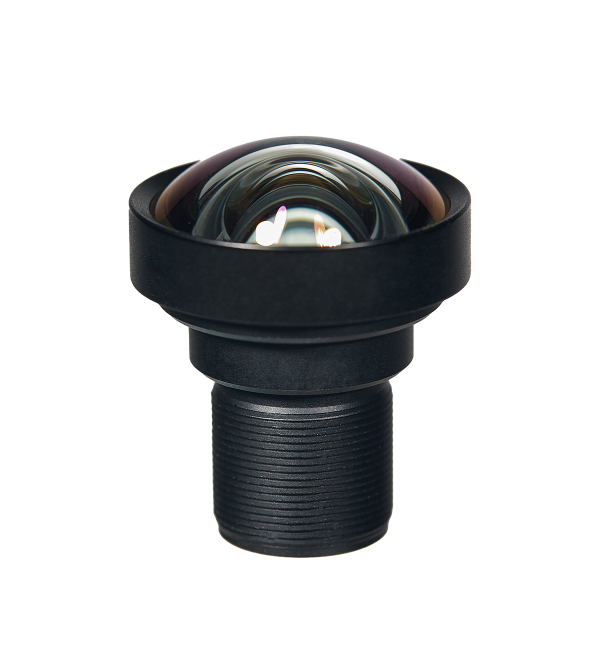

CH3896AB 1/1.7" 4.2mm 8MP Low Distortion Lens
$15.00
- Brand: CHANCCTV
- Product Code: CH3896AB
- Availability: In Stock
- Ex Tax: $15.00
The CH3896AB lens, designed specifically for the fields of smart security and machine vision, is an ideal choice for high-resolution monitoring and imaging systems due to its excellent optical performance and flexible adaptability.
The lens has the following core features:
Low distortion design: It adopts advanced optical design to effectively control distortion and ensure the consistency between the edge and center of the image, which is suitable for scenes with high geometric accuracy requirements.
High resolution imaging: It supports 8 million pixels and provides clear and delicate image quality to meet the application requirements of high-precision visual inspection, monitoring, etc.
Large aperture, high light intake: The aperture value is F1.8, which can still provide bright and clear images in low-light environments, improving the imaging performance in low-light environments.
Ultra-wide field of view: The horizontal field of view is 85.5°, which can capture a wider range of scenes while maintaining the clarity and details of the image.
Strong compatibility: It is compatible with mainstream chip sizes such as 1/1.8" and IMX334, and can be flexibly applied to a variety of devices and systems.
Compact design, easy to integrate: It adopts M12 interface design, compact structure, easy to install and integrate, and suitable for space-constrained devices.
Common application scenarios of this lens are as follows:
Industrial visual inspection: High resolution and low distortion, suitable for precision measurement and defect detection.
Security monitoring: Large aperture and wide viewing angle, improving nighttime and large-scale monitoring effects.
Consumer electronics: Such as smart homes, drones, etc., providing high-quality imaging experience.
Medical equipment: Suitable for endoscopes, microscopes and other equipment with high image quality requirements.
| Specifications And Dimensions | |
| Focal Length | 4.2mm |
| Image Size | 1/1.7" |
| Dimensions | ф22.00*L26.31mm |
| TTL | 30.0mm |
| Lens Structure | 4G4P |
| Pixels And Aperture | |
| Resolution | 8MP |
| F-NO | 1.8 |
| Field Of View | |
| FOV (H*V*D) | 85.5°*54.7°*93.4° |
| Distortion | |
| TV Distortion | <-0.62% |
| Mount And Filter | |
| Mount | M12*P0.5 |
| IR Filter | IR650nm |
