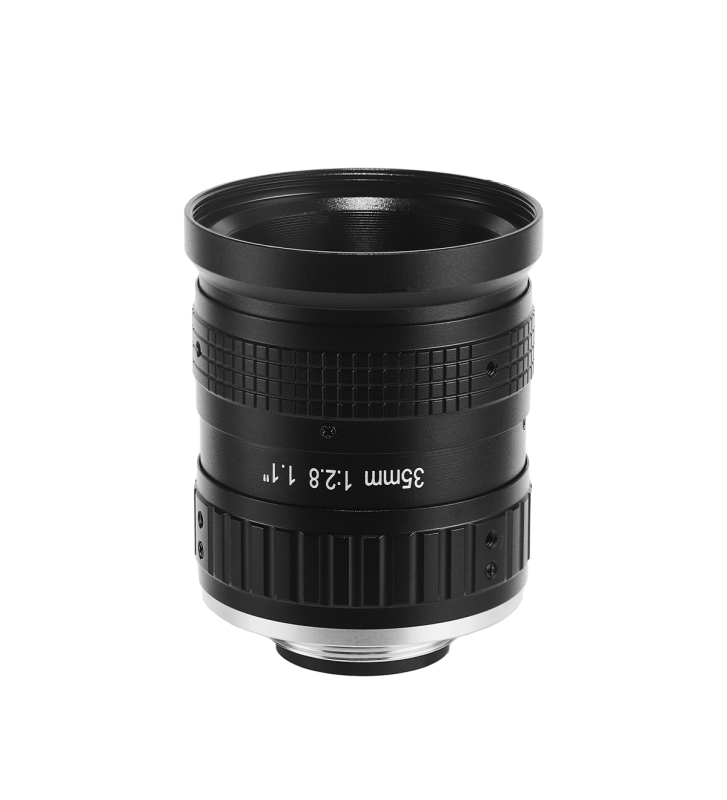

CH667A 1.1" 35mm 25MP Machine Vision Lens
$165.00
- Brand: CHANCCTV
- Product Code: CH667A
- Availability: In Stock
- Ex Tax: $165.00
CH667A is an all-round fixed-focus lens designed for high-precision machine vision and industrial inspection. With its excellent optical performance and flexible adaptability, it has become an ideal choice in the field of automated imaging.
CH667A has the following main product features:
High-resolution imaging: Supports 25 million pixels, provides clear and delicate image details, and meets the needs of high-precision detection.
Wide aperture range: The aperture value range is F2.8 to F16, which can provide stable image quality under different lighting conditions and ensure the brightness and contrast of the image.
Focal length characteristics: With a focal length of 35mm, it achieves an excellent balance between the field of view and imaging details, which can meet the needs of various industrial scenarios for different shooting distances and ranges.
Large target surface compatibility: The target surface is 1.1", which can be adapted to chips of sizes such as 1", 2/3", etc., effectively avoiding the problem of imaging black corners or performance waste caused by the mismatch between the lens and the chip size, greatly improving the flexibility and compatibility of the lens, adapting to different models of industrial cameras, and reducing the cost of system construction.
Filter adaptation: It can adapt to M43*P0.75 external filters to meet special needs such as light filtering and color correction in different environments, and broaden the application boundaries of the lens.
C mount design: It adopts the standard C mount design, which is seamlessly compatible with mainstream industrial camera brands, and can easily and quickly connect and disassemble the lens and camera, providing convenience for equipment maintenance and upgrades.
Field of view advantage: The horizontal field of view angle is 21.5°. Combined with its focal length and pixel configuration, it can present a suitable and clear horizontal field of view at a specific working distance, ensuring that key information is in full view, and facilitating efficient visual inspection and analysis.
The CH667A machine vision lens is suitable for a variety of industrial scenarios due to its high resolution and flexible adaptation. The following are common application scenarios:
1. Electronic manufacturing inspection
In the production of electronic components, such as chip packaging and circuit board welding, its 25 million pixels can clearly capture the tiny defects of components, solder joint quality and other details. The 35mm focal length and 21.5° horizontal field of view can meet the detection distance and range requirements of different workstations, help achieve high-precision quality control, and ensure the quality of electronic products.
2. Precision machining
For the dimensional measurement and surface defect detection of precision mechanical parts, the lens can accurately obtain part contours, surface textures and other information with its excellent imaging capabilities. The characteristics of adapting to a variety of chips enable it to be matched with industrial cameras of different precisions, adapt to various precision machining inspection scenarios, and ensure the accuracy and reliability of mechanical products.
3. Automotive parts production
Automotive parts production processes are numerous, from engine parts to body parts. The CH667A industrial lens can be used for appearance inspection, assembly positioning and other links of parts. Through the good performance of large aperture in low-light environment and the control of large depth of field by small aperture, it is ensured that parts can be clearly imaged under different lighting conditions, improving production efficiency and product qualification rate.
4. Food and drug packaging inspection
On the food and drug production and packaging line, the lens can detect the integrity of packaging seals, label printing quality, appearance of drug particles, etc., to ensure that product packaging meets standards, prevent defective products from entering the market, and ensure consumer safety. Its adaptability to a variety of chips also makes it easier for companies to flexibly configure visual inspection systems according to different production needs.
5. Scientific research and laboratory applications
In scientific research fields such as materials science and biomedicine, this lens can be used for experiments such as microscopic imaging and sample observation. By installing appropriate filters to meet special requirements for light and color, it helps researchers obtain high-quality image data and provides strong support for scientific research.
Specifications And Dimensions | |
Focal Length | 35mm |
Image Size | 1.1" |
Pixels And Aperture | |
Resolution | 25MP |
F-NO | 2.8-16 |
Field Of View | |
FOV (H*V*D) | 21.5°*15.9°*26.6° |
Distortion | |
TV Distortion | <0.15% |
Mount And Filter | |
Mount | C-Mount |
Filter Size | M43*P0.75 |
